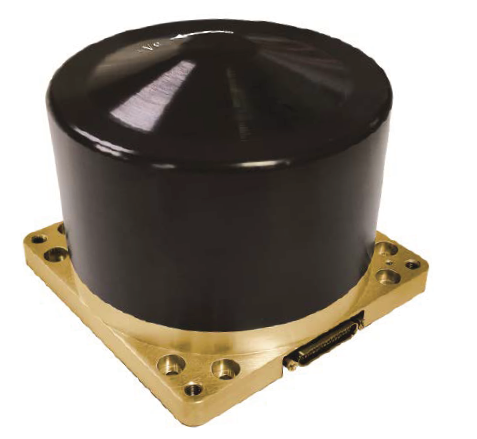

Reaction wheel

CCD
Star sensor
Category:
Part number Maximum Wheel Momentum Maximum Wheel Torque Peak Power Control Mode Dimensions Voltage Supply Static Power Consumption Operational Themperature Range Mass Interface Life Span, year
3mNms Reaction Wheel ≥3mNms@ 6000rpm ≥0.45mNm ≤2.5W@0.45mNm Current, Speed and Torque control model 37×37×37mm (±1mm) 12V (9.6~12.6V)  ≤0.3W -20 ~ +50°C 90g ± 5g CAN & RS422 ≥5
8mNms Reaction Wheel ≥8mNms@ 9000rpm ≥2.5mNm ≤5W@2.5mNm Current, Speed and Torque control model Ø44×21mm (±1mm) 12V (9.6~12.6V)  ≤0.3W -20 ~ +50°C 85g ± 5g CAN & RS422 ≥5
0.1Nms-B Reaction Wheel ≥0.1Nms@ 5000rpm ≥10mNm ≤8W@10mNm Current, Speed and Torque control model 70×70×54mm (±1mm) 12V (9.6~12.6V)  ≤1W -20 ~ +50°C 600g ± 50g CAN & RS422 ≥5
0.2Nms-A Reaction Wheel ≥0.2Nms@ 6000rpm ≥20mNm ≤35W@20mNm Current, Speed and Torque control model 100×100×65mm (±1mm) 28V (24~31V) ≤1.6W -20 ~ +50°C 650g ± 50g CAN & RS422 ≥5
0.6Nms-B Reaction Wheel ≥0.6Nms@ 6000rpm ≥30mNm ≤32W@30mNm Current, Speed and Torque control model 112×112×90mm (±1mm) 28V (24~31V) ≤2W -20 ~ +50°C 1.3kg±0.1kg CAN & RS422 ≥5
1Nms-A Reaction Wheel ≥1Nms@   6000rpm ≥30mNm ≤32W@30mNm Current, Speed and Torque control model 130×130×90mm (±1mm) 28V (24~31V)  ≤2W -20 ~ +50°C 1.5kg ± 0.1kg CAN & RS422 ≥5
2Nms-B Reaction Wheel ≥2Nms@    6000rpm ≥100mNm ≤100W@100mNm Current, Speed and Torque control model 160×160×85mm (±1mm) 28V (24~31V) ≤2W -20 ~ +50°C 2.1kg±0.1kg CAN & RS422 ≥5
4Nms-B Reaction Wheel ≥4Nms@    5500rpm ≥200mNm ≤160W@200mNm Current, Speed and Torque control model 180×180×128mm (±1mm) 28V (24~31V) ≤2W -20 ~ +50°C 3.8kg±0.2kg CAN & RS422 ≥5
8Nms-B Reaction Wheel ≥8Nms@   1600rpm ≥1000mNm ≤250W@1Nm Current, Speed and Torque control model 260×260×118mm (±1mm) 28V (24~31V) ≤2W -20 ~ +50°C 9.5kg±0.5kg CAN & RS422 ≥5
12Nms Reaction Wheel ≥12Nms@ 5500rpm ≥200mNm ≤100W@100mNm Current, Speed and Torque control model 260×260×130mm (±1mm) 28V (24~31V)  ≤2W -20 ~ +50°C 6.2kg±0.3kg CAN & RS422 ≥5
25Nms Reaction Wheel ≥25Nms@ 5000rpm ≥200mNm ≤130W@100mNm Current, Speed and Torque control model 330×330×108mm (±1mm) 42V  ≤3W -20 ~ +50°C 8.5kg±0.5kg CAN & RS422 ≥5
60Nms Reaction Wheel ≥60Nms@ 5000rpm ≥200mNm ≤130W@100mNm Current, Speed and Torque control model 330×330×108mm (±1mm) 42V  ≤3W -20 ~ +50°C 11kg ± 0.5kg CAN & RS422 ≥5
