| Axis | Full Scale Range, g | Nonlinearity, ppm | 3db, Hz | Group delay, ms | Spectral Density, µg/√Hz | Bias @room Temp, mg | Offset vs. Temperature, mg | Bias stability @1s, ug | Bias Year Repeatability (1σ), mg | Operating Temperature Range, °C | Power Supply, V | Current, uA | Digital Output | Package | |
| MAD2005 | – | 5 | <1500 | – | – | <12.5 | <±1 | <±1.25 | 13 | <±0.6 | – | – | – | – | – |

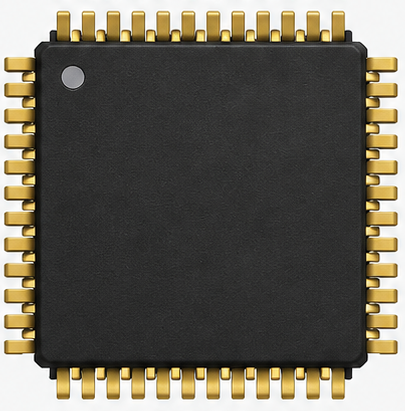

| MAD2010 | X，Y | 10 | <1500 | ≥150 | <1.5 | <15 | <±1 | <±2.5 | 20 | <±1 | -45~+85 | 5±0.25 | <20 | SPI | 6*6*2.25mm, CLCC48 |
| MAD2016 | X，Y | 16 | <1500 | ≥150 | <1.5 | <20 | <±1 | <±3 | 25 | <±1.25 | -45~+85 | 5±0.25 | <20 | SPI | 6*6*2.25mm, CLCC48 |
| MAD2020 | X，Y | 20 | <1500 | ≥150 | <1.5 | <25 | <±1 | <±3 | 25 | <±1.25 | -45~+85 | 5±0.25 | <20 | SPI | 6*6*2.25mm, CLCC48 |
| MAD2030 | – | 30 | <1500 | – | – | <40 | <±1 | <±5 | 50 | <±1.75 | – | – | – | – | – |
| MAD2050 | – | 50 | <3000 | – | – | <100 | <±1.5 | <±6 | 100 | <±2 | – | – | – | – | – |
| MAD2110 | X，Y | 10 | 100 | ≥200 | <1.5 | <100 | ±1 | <10 | 75 | <200 | -40 ~+150 | 3.3±10% | 600 | SPI | 6*6*2mm, CLCC14 |
| MAD2130 | X，Y | 30 | 300 | ≥200 | <1.5 | <100 | ±1 | <15 | 100 | <350 | -40 ~+150 | 3.3±10% | 600 | SPI | 6*6*2mm, CLCC14 |
| MAT-1000 | X，Y，Z | 20 | 5000 | ≥200 | <3 | <100 | ±1.5 | <±3 | 150 | <1 | -45~+85 | 3.3±5% | <600 | SPI | 6 × 5.6× 2.2 mm, LCC |
